TUV PV Solar Cable Connectors IP67 Protection

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: PV004

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton

Delivery Time: 3-10days

Payment Terms: L/C, T/T

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

solar pv connectors

,

plug socket connector

Product Name:
Connector
Material:
PC
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Product Name:
Connector
Material:
PC
Gender:
Female And Male
Rated Voltage:
1000VDC
Protection Degree:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Color:
Black
Description
TUV PV Solar Cable Connectors IP67 Protection



TUV approved IP67 Imported PC connector 1000V DC Black 30A 25years warranty



solar connector is most used in solar photovoltaic power generation system of a special connector, the connector (compatible with connector) is a solar pv panels in series with a parallel array module when the special connector, reliable connection rapidly, waterproof and dustproof, easy to use etc, shell has strong anti-aging, uv resistant ability, the cable connection adopts the hoops and clamping method connection, male and female head fixed with stable self-locking mechanism, open and close freely.It is an indispensable and important part of solar power system.Product science structure, selected materials, ensure that the mechanical and electrical properties are good.



Type: connector PV004
Electrical Features:
Rated Current 25A(2.5/4mm2),30A(4/6mm2)
Withstanding Voltage 1000V DC(TUV),600V(UL)
Contact Resistance ≤0.3mΩ
Protection Class Class II
Mechanical Features:
Temperature Range -40 oC~+90oC
Protection Degree IP2X,unmated;IP67,mated
Wire Size Range 2.5/4/6mm2(14AWG,12AWG,10AWG)
Unmating Force 200 Newton
Material Features:
Insulation Material PC
Contact Material Copper,Tin plated
Flame Class UL94-V0 or UL94-5VA



Advantage:



• Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly

• High mechanical endurance

• High current and voltage carrying:30A,1000VDC

• Low transition resistance

• Innovative sealed,waterproof,dust resistance design:IP68

• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

• Approved by TUV

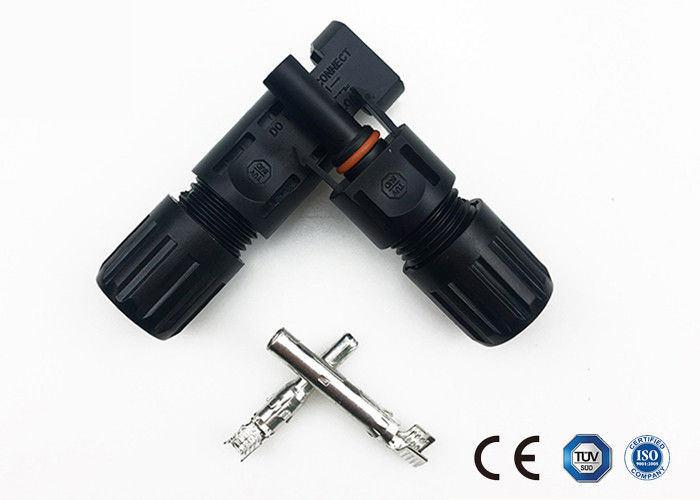

Picture of solar panel connectors

TUV PV  Solar Cable Connectors IP67 Protection 0

TUV PV  Solar Cable Connectors IP67 Protection 1TUV PV  Solar Cable Connectors IP67 Protection 2

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the connector. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.
