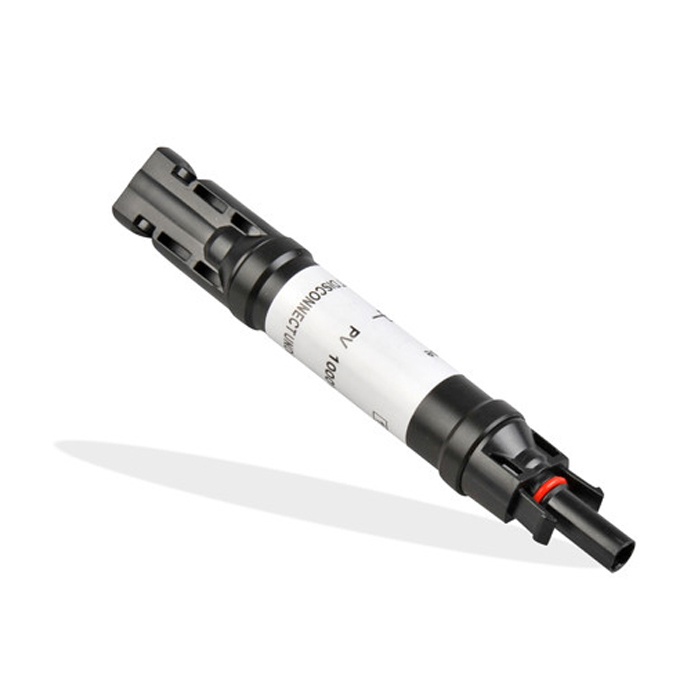

DC 1000V 20A Solar Fuse Connector IP67 Black 4.0mm Pin

Name: DC 1000V 20A Solar Fuse Connector IP67 Black 4.0mm Pin
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV004-F
Availability: InStock

Product Details

Place of Origin: China

Certification: CE/ISO9001

Model Number: PV004-F

Payment & Shipping Terms

Minimum Order Quantity: 100pcs

Price: Negotiation

Packaging Details: PP bag

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    20A Solar Fuse Connector, 4.0mm Pin Solar Fuse Connector


Product Name:	Connector With Fuse	Color:	Black
Connector:	Female And Male	Rated Voltage:	DC 1000V
Protection Degree:	IP67	Flame Class::	UL94-V0

Product Name:	Connector With Fuse
Color:	Black
Connector:	Female And Male
Rated Voltage:	DC 1000V
Protection Degree:	IP67
Flame Class::	UL94-V0

Description

DC 1000V 20A Solar Fuse Connector IP67 Black 4.0mm Pin

DC 1000V 4.0mm Pin 20A Solar Fuse Connector

CE approved 1000V DC in-line 20A solar fuse connector with fuse holder. Compatible with multi-contact connectors, suitable for solar cables (2.5mm², 4mm², and 6mm²) in solar connection projects. Provides quick and reliable connections for photovoltaic systems including solar panels and converters.

Product Specifications

Product Name	Connector With Fuse
Housing Material	PPO
Contact Material	Copper, silver plated
Pin Dimension	4.0 mm
Contact Resistance	Less than 0.5 mΩ
Application Class	Class A
Rated Voltage	TUV 1500V DC/UL 600V DC
Rated Current	1~30A
Test Voltage	6KV (5Hz, 1Min)
Flame Class	UL94-V0
Plug Force	Less than 50N
Withdrawal Force	More than 50N
Rated Temperature	-40°C ~ +85°C
Upper Limited Temperature	100°C
Waterproof	IP67/IP68
Pollution Degree	2
Protection Degree	Class II
Standard	TUV
Service Life	20 years
Suitable Cable Cross Sections	2.5mm/4mm/6mm (14AWG/12AWG/10AWG) PV Wire

Key Advantages

Designed for harsh environments with excellent durability
Double seal rings for superior waterproof performance
Dust-proof sealed design
Quick and simple assembly without special tools
Low contact resistance for efficient power transmission
Excellent aging resistance and UV endurance
High current and voltage load capability
Strong pulling force resistance
Extreme temperature resistance and fireproof

Frequently Asked Questions

1. When can I get the quotation?

Within 24 hours of inquiry. For urgent pricing, please call with complete cable specifications.

2. How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

3. What payment methods do you accept?

We accept T/T (bank transfer) and L/C.

4. Do you accept customized orders?

Yes, we accommodate custom specifications.

5. Do you offer OEM & ODM services?

Yes, both OEM and ODM services are available.

Product Image
