1000VDC Rated Voltage PV Junction Box with UL94-V0 Flame Resistance and PPO Anti-Aging Solar Module Junction Box

Name: 1000VDC Rated Voltage PV Junction Box with UL94-V0 Flame Resistance and PPO Anti-Aging Solar Module Junction Box
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV-YN002
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/UL/CE/ISO9001

Model Number: PV-YN002

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Negotiation

Packaging Details: Bulk 50pcs/carton

Delivery Time: 3-10days

Payment Terms: L/C,T/T

Supply Ability: 5000pcs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    pv module junction box, photovoltaic junction box


Product Name:	PV Junction Box	Material:	PPO
Color:	Black	Protection Degree:	IP67
Diode Current::	10A	Rated Voltage:	1000VDC

Product Name:	PV Junction Box
Material:	PPO
Color:	Black
Protection Degree:	IP67
Diode Current::	10A
Rated Voltage:	1000VDC

Description

1000VDC Rated Voltage PV Junction Box with UL94-V0 Flame Resistance and PPO Anti-Aging Solar Module Junction Box

10A One Diode PV Junction Box, PPO Anti-Aging Solar Module Junction Box

TUV 1000V DC Solar PV Junction Box with one diode for Solar PV Module

Product Specifications

Technical Details

Number of terminals: 2
Number of diodes: 1
Cable Spec: 4mm²
Connection method: Clamp
Rated current: 10A
Rated Voltage: 60V
Operating Temperature: -40°C to 85°C
Protection Degree: IP67
Protection Class: Class II

Product Name	PV Junction box
Certificate	TUV
Rated Voltage	1000V DC(TUV)
Rated Current	10A
Temperature Range	-40ºC~+90ºC
Safety Class	Class II
Protection Degree	IP67
Wire Size Range	4mm²
Flame Resistance	UL94-V0/5VA
Waterproofing Structure	Seal
Width Of Copper Ribbons	Up to 8mm
Connection Method	Spring Clamping
Insulation Material	PPO, black
Contact Material	Copper, Tin plated
No. Of diode	1
Optional connector	connector

Key Features

Anti-aging and UV-resistant outer cover
Designed for harsh outdoor conditions
Self-locking function for convenient and secure connections
Anti-electric shock insulation protection for enhanced safety
Firmly installed terminals with excellent weldability

Assembly Instructions

Use only specified parts and tools from R&X to ensure safety and compliance with technical data.
Isolate PV connectors from power supply during assembly/disassembly for electric shock protection.
End product must provide protection from electric shock.
Do not unplug PV connections under load - switch off DC/AC converter first.
Protect disconnected connectors from dirt and water with sealing caps.
Plugged parts maintain IP67 watertight rating.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of inquiry. For urgent requests, please call with complete cable specifications.

How long about the delivery?

Typically 3-4 working days after payment, depending on quantity.

What's your payment terms?

We accept T/T (bank transfer) and L/C.

Do you accept the customized order?

Yes, we do.

Do you offer OEM & ODM?

Yes, OEM & ODM services are available.

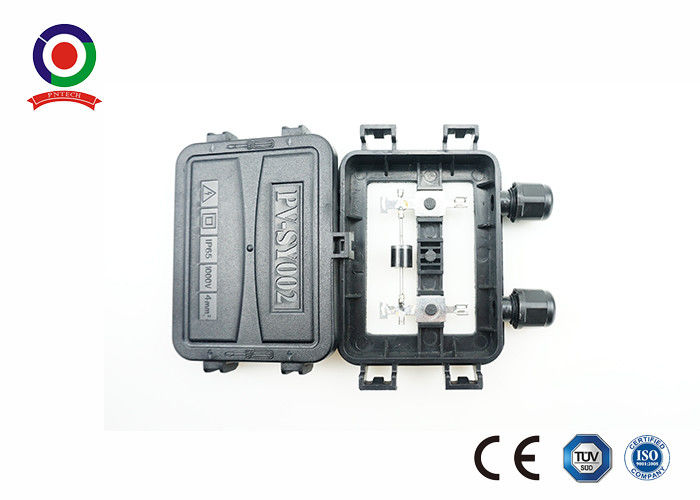

Product Image
