Auto Lock OEM 6mm2 Solar Cable , Dust Proof Solar Panel Power Cable

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: DC-00

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000pairs per day

Get Best Price
Contact Now
Specifications
Highlight:

solar panel power cable

,

solar system cable

Product Name:
Solar Panel Cable Connector
Cable Type:
PV1-F 1x6mm2
Rated Voltage:
1000VDC
Degree Of Protection:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Product Name:
Solar Panel Cable Connector
Cable Type:
PV1-F 1x6mm2
Rated Voltage:
1000VDC
Degree Of Protection:
IP67
Rated Current::
30A
Contact Resistance:
≤5mΩ
Description
Auto Lock OEM 6mm2 Solar Cable , Dust Proof Solar Panel Power Cable


OEM meters 6mm2 Solar Panel Cable Connector Female Male Black Red

Solar cable Description

Cable description:

TUV PV Cable Fire Resistant Cables
A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1. Fire-resistant performance:IEC60332-1.
2. Smoke emission:IEC61034;EN50268-2
3. Low fire load:DIN51900
4. Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502

Connector

1. Connector adopts touch of reed with inne-knob type.
2. Auto-lock enable connection more easy and reliable.
3. Popular figure suit most of field installation.
4. Quickly to connector.
5. Water proof and prevent dust.
6. Long life.


Name Solar Cable
ConnectorConnector name Solar Connector
Rated current30A
Rated voltage1000V DC
Overvoltage categoryCATIII
Degree of protectionIP67
Flame classUL94-V0
Safety classII
Temperature range-40℃ ~ +110℃
Insertion force/withdrawal force≤50N/≥50N
Wire/CableCable Guage16AWG,14AWG,12AWG,10AWG,(1.5MM²-6mm²)
Cable conductorTinned copper or bare copper
Cable colorRed&Black
Cable InsulationXLPE
Cable Length0.1m-10m Optional
functionUV Resistant,High Resistance against oil,greases,oxygen and ozone,Microbe-resistant,High wear and abrasion resistance
Temperature Range-40℃ ~ +90℃
OEM/ODMYes.Offered.
Product warranty timeReturn Policy: Provide within half of a month.
Warranty: 1year.


Assembly Instructions

During self assembly ,parts and tools other those stated are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.
For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled
The end product must provided protection from electric shock
Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted
Disconnected connectors should be protected from dirt and water with sealing caps.
Plugged parts are watertight IP67

Advantage:

• Simple,quick,safe and effective filed assembly
•  Develop independently,innovative design,have independent intellectual property rights,adaptive to connector directly
• High mechanical endurance
• High current and voltage carrying:30A,1000VDC
• Low transition resistance
• Innovative sealed,waterproof,dust resistance design:IP68
• Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application
• Approved by TUV

FAQ:

1. When can I get the quotation?
Within 24 hours of getting the inquiry, if you are very urgent to get the price, please call us to give complete specifications about the cable. price will be calculated soon.
2. How long about the delivery?
Usually within 3-4 working days after payment, mainly according to the quantity.
3. What's your payment terms?
We accept T/T (bank transfer), L/C
4. Do you accept the customized order?
Yes, we do.
5. Do you offer OEM & ODM?
Yes. OEM & ODM are available.

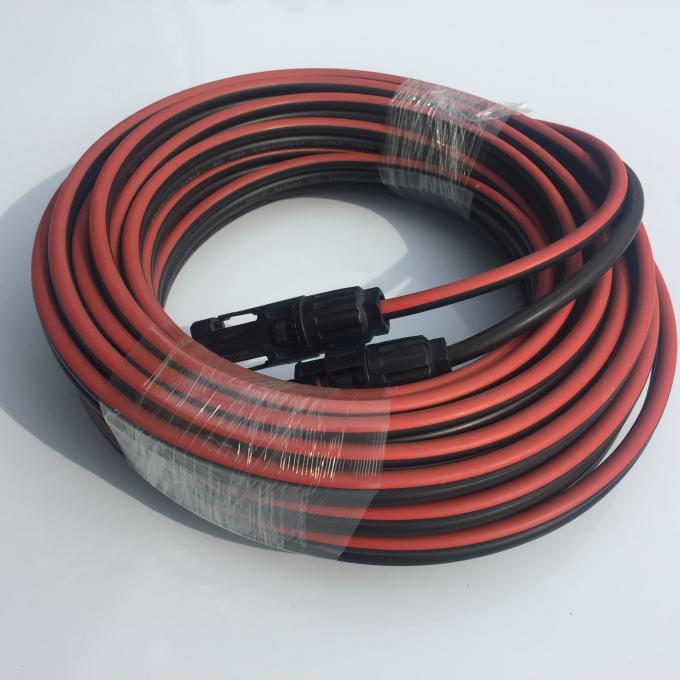

Picture of  Solar Panel Cable Connector
Auto Lock OEM 6mm2  Solar Cable , Dust Proof Solar Panel Power Cable 0
