Black Solar Panel Connectors with 6KV Test Voltage ≤5mΩ Contact Resistance and -40ºC~+125ºC Temperature Range

Name: Black Solar Panel Connectors with 6KV Test Voltage ≤5mΩ Contact Resistance and -40ºC~+125ºC Temperature Range
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: PV005
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: PV005

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Negotiation

Packaging Details: 100sets/polybag 500sets/carton 39x39x22cm

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 5000pairs per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    solar pv connectors, plug socket connector


Product Name:	Solar Panel Connectors	Material:	PPO
Test Voltage:	6KV(50Hz,1Min)	Protection Degree:	IP67
Contact Resistance:	≤5mΩ	Color:	Black

Product Name:	Solar Panel Connectors
Material:	PPO
Test Voltage:	6KV(50Hz,1Min)
Protection Degree:	IP67
Contact Resistance:	≤5mΩ
Color:	Black

Description

Black Solar Panel Connectors with 6KV Test Voltage ≤5mΩ Contact Resistance and -40ºC~+125ºC Temperature Range

Black Solar Panel Connectors For Outdoor Harsh Environments CE Approved

Solar Panel Connectors Male and Female CE Approved 1000V DC 30A IP67

PV Connector Description

Compatible with cable solar connector
10 Years of production experience in solar connectors
Quick and easy to install
Protection class IP68 suitable for outdoor harsh environments
Stable connection & reducing maintenance cost
Solar photovoltaic (PV) connector, waterproof connector, IP67
Open type inner core of Zinc plating material

Assembly Instructions

During self assembly, only use parts and tools specified by R&X
PV connectors must be isolated from power supply during assembly/disassembly
End product must provide protection from electric shock
PV connections must not be unplugged while under load
Disconnected connectors should be protected with sealing caps
Plugged parts are watertight IP68

Technical Specifications

Product Name	1500V Solar Connector
Rated Current	30A(2.5~6mm²)
Rated Voltage	1000V DC
Test Voltage	6000V(50HZ, 1min)
Contact resistance	1 mΩ
Contact material	Copper, Ag plated
Insulation material	PC
Degree of protection	IP20/IP67
Flame class	UL94-V0
Temperature range	-40ºC~+125ºC
Packing unit	1000pcs
Minimum order quantity	1000pcs

Product Advantages

Simple, quick, safe and effective field assembly
Independent development with innovative design and IP rights
High mechanical endurance
High current and voltage capacity: 30A, 1000VDC
Low transition resistance
Innovative sealed, waterproof, dust resistance design: IP68
Excellent plastic material, UL 94-V0, wide temperature range (-40°C to 90°C)
Weather and UV resistant for long-term outdoor applications
TUV approved

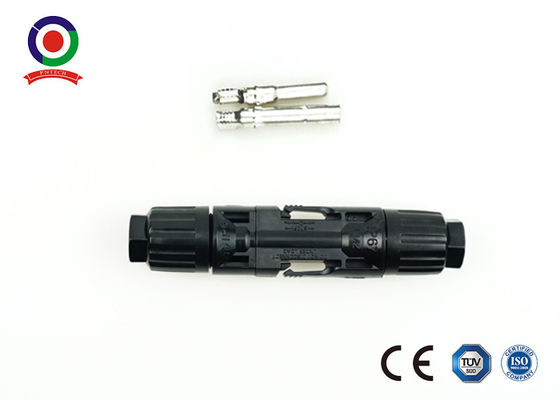

Product Image

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of getting the inquiry. For urgent pricing, please call with complete specifications.

How long about the delivery?

Usually within 3-4 working days after payment, depending on quantity.

What's your payment terms?

We accept T/T (bank transfer), L/C.

Do you accept the customized order?

Yes, we do.

Do you offer OEM & ODM?

Yes. OEM & ODM are available.
