2.5mm2 Twin Core PV Solar Cable 11mm OD XLPE Sheath

Name: 2.5mm2 Twin Core PV Solar Cable 11mm OD XLPE Sheath
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2 2x2.5mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2 2x2.5mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m

Price: Negotiation

Packaging Details: 100m/roll

Delivery Time: 3-10days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 50000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    2 core solar cable, twin core electrical cable


Product Name:	Twin Core Pv Solar Cable	Cable OD:	11mm
Sheath:	XLPE	Conductor:	Tinned Copper
Struction:	2*49/0.25mm	Rate Voltage:	0.6 / 1KV AC 1800V DC
Core:	2 Core	Color:	Black

Product Name:	Twin Core Pv Solar Cable
Cable OD:	11mm
Sheath:	XLPE
Conductor:	Tinned Copper
Struction:	2*49/0.25mm
Rate Voltage:	0.6 / 1KV AC 1800V DC
Core:	2 Core
Color:	Black

Description

2.5mm2 Twin Core PV Solar Cable 11mm OD XLPE Sheath

Double Protection Twin Core Electrical Cable 2.5mm² OD High Flame Retardant Properties

TUV EN50618 twin core 2.5mm² 1.5KV PV solar cable with UV resistance and tinned copper construction.

Product Description

Conductor: Tinned annealed copper
Insulation: 120°C XLPE, black
Jacket: 120°C XLPE, black or red
Nominal Voltage: AC 600/1000V DC 1000/1800V
Characteristics: Heat-resistant flame retardant, UV/ozone/hydrolysis/climate resistance
Sheath Color: Black or as per customer's request
Temperature Rating: -40°C to +125°C (-40°F to +257°F)
Ambient Temperature: 25 years (TUV) -40°C to +90°C (-40°F to +194°F)
Max. Short Circuit Temperature: 280°C (+536°F)
Bending Radius: Fixed installation >4X, Occasionally moved >5X

TWIN CORE SOLAR CABLE \| PART NO: PV1-F 2X2.5mm²
CONSTRUCTION
CONDUCTOR MATERIAL	Tinned copper
CONSTRUCTION	50/0.25mm
RESISTANCE	8.21 Ω/km (MAX. at 20℃)
INSULATION
MATERIAL	XLPE
DIAMETER	2.0±0.1 mm
THICKNESS	0.6±0.10 mm
COLOUR	Black / Red
JACKET
MATERIAL	XLPE
DIAMETER	11 X 5.3mm
THICKNESS	0.6±0.10 mm
COLOUR	Black
ELECTRICAL DATA
Rated Rating	AC 0.6/1KV DC1800V
Rated temperature	-40～＋90,Dry and Wet
60℃ rated current	41A
Test voltage	3.0KV AC
Weathering Resistance	Sun Res.
MARKING	PV1-F 2×2.5mm² NINGBO NEW ENERGY CO.,LTD TÜV SÜD approved VDE-AR-E 2283-4:2011-10

Specifications

Conductor	Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation	Polyolefin Copolymer electron-beam cross-linked
Sheath Jacket	Polyolefin Copolymer electron-beam cross-linked
Nominal Voltage	Uo/U=600V/1000VAC, 1000V/1800VDC
Test Voltage	6500V, 50Hz, 5Min
Temperature Rating	-40°C-125°C, More than 25 Years (TUV)
Fire Performance	IEC 60332-1
Smoke Emission	IEC61034, EN 50286-2
Low Fire Load	DIN 51 900
Certification	TUV 2PFG 1169/08 2007 PV1--F

Key Advantages

99.9% high-purity oxygen-free copper: High quality tin-plated copper with anti-aging properties, high electrical conductivity, low loss, strong current carrying capacity, and high corrosion resistance for outdoor harsh environments.
Low eccentricity: Uniform thickness prevents current breakdown fire, ensuring safety.
Double protection: Insulation and jacket dual-layer structure extends cable service life.
High-performance polymer materials: Environmentally friendly low-smoke halogen-free flame-retardant cross-linked polyolefin materials with wear-resistant, high temperature, oil, ozone, and UV resistant properties.
Strong flexibility: Excellent pressure, bending, and toughness characteristics.
Long service life: Normal outdoor use lifespan exceeds 25 years.
Advanced manufacturing: ISO9001-2008 and IATF16949:2016 certified production with state-of-the-art equipment.

Frequently Asked Questions

When can I get the quotation?

Within 24 hours of receiving your inquiry. For urgent pricing, please call us with complete cable specifications.

How long is the delivery time?

Typically 3-4 working days after payment, depending on order quantity.

What are your payment terms?

We accept T/T (bank transfer) and L/C.

Do you accept customized orders?

Yes, we do.

Do you offer OEM & ODM services?

Yes, OEM & ODM services are available.

Product Image

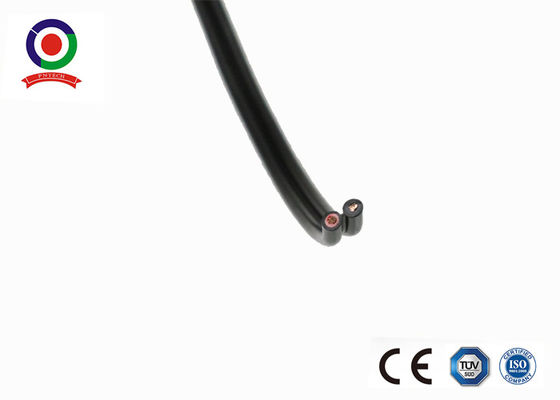

Twin core PV solar cable 2.5mm² with black insulation and jacket
