Halogen Free Electrical Wire Single Core Deformation Resistant At High Temperature

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x10mm2

Payment & Shipping Terms

Minimum Order Quantity: 100m / roll

Price: Negotiation

Packaging Details: 100m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

single core electrical cable

,

tuv solar cable

Product Name:
10mm2 DC Solar Cable
Current:
98A
Insulation Material:
XLPE
Structure:
80/0.4mm
Conductor Material:
Stranded Tinned Copper
Cable OD:
7.4mm
Resistance:
≤1.95(Ω/KM)
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Temperature Range:
-40℃~+90℃
Product Name:
10mm2 DC Solar Cable
Current:
98A
Insulation Material:
XLPE
Structure:
80/0.4mm
Conductor Material:
Stranded Tinned Copper
Cable OD:
7.4mm
Resistance:
≤1.95(Ω/KM)
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Temperature Range:
-40℃~+90℃
Description
Halogen Free Electrical Wire Single Core Deformation Resistant At High Temperature



TUV EN50618 8AWG 10mm2 1.5KV DC solar cable XLPE insulation tinned copper 1KV AC



Conductor: Stranded bare copper or tinned Copper
Insulation: ROHS thermosetting insulation material,prior color black or as customer's request.
Sheath: LSZH&UV-resistant electron-beam cross-linked thermosetting Polyolefin copolymer ROHS material,prior color black or as customer's request

1. Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;

2. Test Voltage:6500V,50Hz,5Min.
3. Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
4. Bending Radius:Fixed installation>4X Occasionally moved>5X



Type Cross Section Strand Design Conductor Diameter Conductor Resistance Outer Diameter Rated Voltage Rated Current
H1Z2Z2-K 1x10mm2 10mm2 80x φ0.4mm 4.4mm 1.95 Ω/km 7.4mm 1500VDC 98A



Applications


Single conductor, sunlight-resistant, photovoltaic wire rated 90°C wet or 105°C dry 2000V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 690.31(A) and other applicable parts of the National Electrical Code (NEC), NFPA 70


Construction


Conductor: 8 AWG thru 1000 kcmil compact aluminum (8000 series)
Insulation: Flame-retardant Cross-Linked Polyethylene (XLPE), black


Options:


Colored phase ID stripes available on request
Multi-plexing available on request


Features:


Rated 90°C wet and dry
Deformation-resistant at high temperatures
Excellent moisture resistance,
Stable electrical properties over a broad temperature range
Excellent resistance to crush and compression cuts
Resistant to most oils and chemicals
UV/sunlight-resistant
Meets cold bend test at -40°C



Product Name TUV Standard Solar Cable
Model NO. H1Z2Z2-K 1x 10mm2
Voltage High Voltage Cable
Insulation Material XLPE
Material Shape Round Wire
Certification ROSH, CE, TUV
Standards TUV EN50618
Cores 1 Core
Transport Package Iron-Wooden Drum, Iron Drum
Application Construction, Underground, Industrial, Power Station
Sheath Material XLPE
Wire Core Material Tinned Copper
Cross Section 10mm2




Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2,4mm2, 6mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

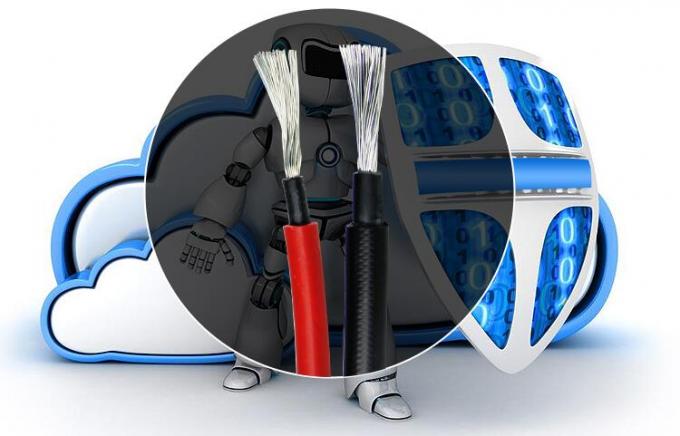

Pictures of 10mm2 DCsolar Cable
