Single Core TUV Solar Cable 6mm2 High Temperature Resistant Good Cold Flexibility

Product Details

Place of Origin: China

Brand Name: Pntech

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m / roll

Price: Negotiation

Packaging Details: 200m/roll, two rolls per carton, Carton size: 42*42*22cm Also pack according to customer's requirements

Delivery Time: 3-7days

Payment Terms: L/C, T/T

Supply Ability: 70000m per day

Get Best Price
Contact Now
Specifications
Highlight:

single core electrical cable

,

tuv solar cable

Product Name:
Single Core Solar Cable 6mm2
Structure:
78/0.3mm
Insulation Material:
XLPE
Temperature Range:
-40℃~+90℃
Conductor Material:
Stranded Tinned Copper
Cable OD:
6mm
Resistance:
≤3.39(Ω/KM)
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Packing:
200m Per Roll
Product Name:
Single Core Solar Cable 6mm2
Structure:
78/0.3mm
Insulation Material:
XLPE
Temperature Range:
-40℃~+90℃
Conductor Material:
Stranded Tinned Copper
Cable OD:
6mm
Resistance:
≤3.39(Ω/KM)
Rated Voltage:
AC Uo/U0.6~1.0KV , DC1.5KV
Color:
Black / Red
Packing:
200m Per Roll
Description
Single Core TUV Solar Cable 6mm2 High Temperature Resistant Good Cold Flexibility



TUV Certificated EN50618 XLPE single core solar Cable 6mm2 1000V AC 1.5KV DC


Advantages of XLPE Insulated PV 6mm2 single core Solar Cable


1. Electron-beam cross-linked compounds.
2. UV,ozone and hydrolysis resistant.
3. High temperature resistant,the materials does not melt or flow.
4. Good cold Flexibility.
5. Very long service life>25years at 90oC.
6. Compatible to all popular connectors.


Specification :



1. Rating:Voltage: 600/1000V Temperature:-40°C-- 90°C
2. Description:
(1) Conductor: Tinned annealed copper
(2) Insulation:90°C XLPE , black
(3) Jacket:90°C XLPE , black or red
(4) Conductor:78/0.3mm
(5) Cable OD: 6.0mm
3. Marking:Marking:
TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x6,0mm2 DC 1.5 KV NINGBO PNTECH NEW ENERGY CO.,LTD


Application :



Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
General characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone,UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free ,
flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely
mechanically robust, very long lifetime.


Product Name TUV Standard Solar Cable
Model NO. H1Z2Z2-K 1x 6mm2
Voltage High Voltage Cable
Insulation Material XLPE
Material Shape Round Wire
Certification ROSH, CE, TUV
Standards TUV EN50618
Cores 1 Core
Transport Package Iron-Wooden Drum, Iron Drum
Application Construction, Underground, Industrial, Power Station
Sheath Material XLPE
Wire Core Material Tinned Copper
Cross Section 6mm2




Name PV Cable
The product description Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant.
Flame retardant, cutting resistance and penetration resistance.
Cable protection level Ⅱ level.
With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus.
It conforms to ROHS, and the insulation resistance is small after immersion.
Electrical 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F
25, 16 and 10, 6, 4, 2 mm ^ 2 PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Detailed parameters Ambient temperature: - 40 ℃ ~ + 90 ℃
The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃)
Limited voltage: AC0.6/1kv dc1.8kv.


(We also produce single core of 2.5mm2,4mm2 10mm2 and 16mm2, as well as dual cores,
please consult me directly if necessary)

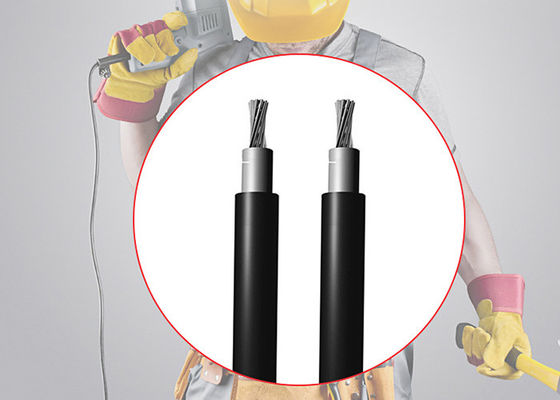

Pictures of 6mm DC PV single core solar Cable

Single Core TUV Solar Cable 6mm2 High Temperature Resistant Good Cold Flexibility 0Single Core TUV Solar Cable 6mm2 High Temperature Resistant Good Cold Flexibility 1
