6mm TUV Solar Cable 1.5KV DC XLPO Insulation 200m Roll

Name: 6mm TUV Solar Cable 1.5KV DC XLPO Insulation 200m Roll
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x6mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x6mm2

Payment & Shipping Terms

Minimum Order Quantity: 200m / roll

Price: Negotiation

Packaging Details: 200m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    double insulated single core cable, single core electrical cable


Product Name:	6mm Pv Cable	Structure:	84/0.28mm
Insulation Material:	XLPO	Jacket Material:	XLPO
Conductor Material:	Stranded Tinned Copper	Cable OD:	6.6mm
Resistance:	≤3.39（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red	Packing:	200m Per Roll

Product Name:	6mm Pv Cable
Structure:	84/0.28mm
Insulation Material:	XLPO
Jacket Material:	XLPO
Conductor Material:	Stranded Tinned Copper
Cable OD:	6.6mm
Resistance:	≤3.39（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red
Packing:	200m Per Roll

Description

6mm TUV Solar Cable 1.5KV DC XLPO Insulation 200m Roll

Weather Resistant Single Core Solar Cable, High Voltage Cable with Low Space Requirement

TUV Certificated Double Insulated Photovoltaic PV Cable 6mm² 1000V AC 1.5KV DC

Construction

Conductor: Tinned Copper, according to the VDE 0295 Class 5
Insulation: Polyolefin copolymer electron-beam cross-linked
Outer Sheath: Polyolefin copolymer electron-beam cross-linked
Sheath Color: Black/Red/Blue or as per customer's request

Technical Specification

Nominal Voltage: U0/U=600/1000V AC, 1000/1800V DC
Test Voltage: 6500V, 50Hz, 5Min
Temperature Rating: -45ºC to +125ºC, -40ºF to +257ºF (Ambient temperature: 25 years TUV) -40ºC to +90ºC, -40ºF to +194ºF
Max. Short Circuit Temperature: 280ºC, +536ºF
Bending Radius: Fixed installation >4X, Occasionally moved >5X

Material Properties/Standards

Fire-resistant performance: IEC60332-1
Smoke emission: IEC61034; EN50268-2
Low fire load: DIN51900
Approvals: TUV
Application Standards: EN50618

Specification

Rating: Voltage: 600/1000V, Temperature: -40°C to 90°C
Description:
- Conductor: Tinned annealed copper
- Insulation: 90°C XLPO, black
- Jacket: 90°C XLPO, black or red
- Conductor: 84/0.3mm
- Cable OD: 6.6mm
Marking: TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x6,0mm² DC 1.5 KV NINGBO NEW ENERGY CO.,LTD

Outstanding Advantages

Dual wall insulation, electron beam cross-linked
Excellent resistance to UV, oil, greases, oxygen and ozone
Excellent resistance to abrasion
Halogen free, flame retardant, low toxicity
Excellent flexibility and stripping performance
High current carrying capacity
TUV approved

Product Name	TUV Standard Solar Cable
Model NO.	H1Z2Z2-K 1x 6mm²
Voltage	High Voltage Cable
Insulation Material	XLPO
Material Shape	Round Wire
Certification	ROSH, CE, TUV
Standards	TUV EN50618
Cores	1 Core
Transport Package	Iron-Wooden Drum, Iron Drum
Application	Construction, Underground, Industrial, Power Station
Sheath Material	XLPO
Wire Core Material	Tinned Copper
Cross Section	6mm²

Application

Specifically designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. For permanent installations.

General characteristics: Cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire - low smoke, halogen free, flame free, flame retardant; flexible, easy to strip, very low space requirement, extremely mechanically robust, very long lifetime.

Double insulation, electron-beam cross linked cables for photovoltaic power station.

Name	PV Cable
The product description	Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries.
Product features	Low smoke without halogen, good cold, ultraviolet, ozone-resistant and weather-resistant Flame retardant, cutting resistance and penetration resistance Cable protection level II level
Electrical	The dc resistance: the finished cable at 20℃ conductive wire core dc resistance is not greater than 5.09 Ω/km The insulation resistance: the finished insulation resistance of cable at 20℃ should not less than 1014 Ω.cm, finished cable insulation resistance at 90℃ is not less than 1011 Ω.cm The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω
Cable structure	Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² PV1-F Insulation: >0.5mm thick with low smoke and halogen material Sheath: low smoke and halogen free material thickness >0.5mm
Detailed parameters	Ambient temperature: -40℃ ~ +90℃ The highest temperature of conductor: 120℃ (allow 5s in short circuit temperature 200℃) Limited voltage: AC0.6/1kv dc1.8kv

(We also produce single core of 2.5mm², 4mm², 10mm² and 16mm², as well as dual cores, please consult me directly if necessary)

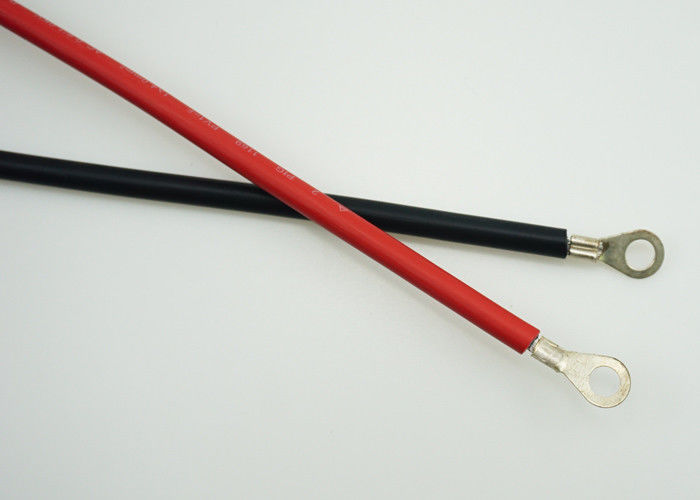

Pictures of 6mm DC PV Cable
