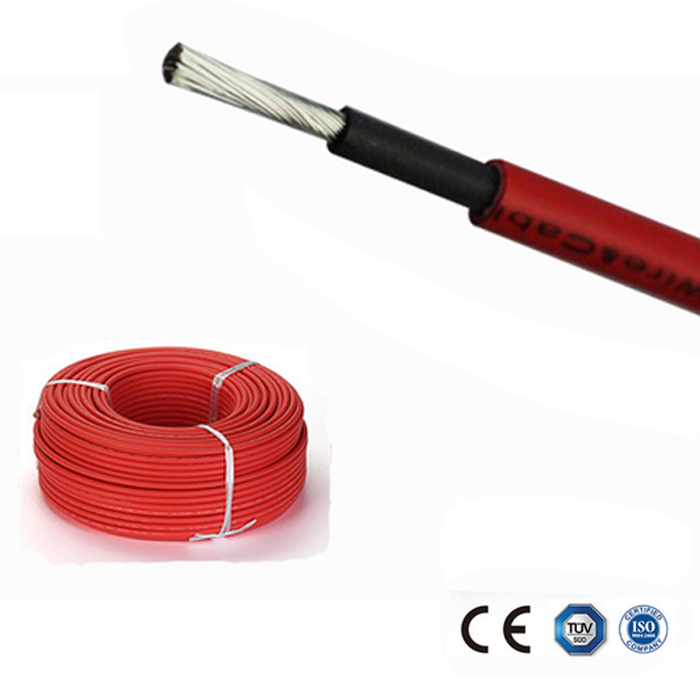

2.5mm DC Solar Cable XLPE Insulation 5mm OD Tinned Copper

Name: 2.5mm DC Solar Cable XLPE Insulation 5mm OD Tinned Copper
Brand: ZHEJIANG PNTECH TECHNOLOGY CO., LTD
SKU: H1Z2Z2-K 1x2.5mm2
Availability: InStock

Product Details

Place of Origin: China

Certification: TUV/CE/ISO9001

Model Number: H1Z2Z2-K 1x2.5mm2

Payment & Shipping Terms

Minimum Order Quantity: 250m / roll

Price: Negotiation

Packaging Details: 250m per roll

Delivery Time: 3-7days

Payment Terms: L/C,T/T

Supply Ability: 70000m per day

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    single core electrical cable, tuv solar cable


Product Name:	2.5mm Dc Solar Cable	Structure:	49/0.25mm
Insulation Material:	XLPE	Jacket Material:	XLPE
Conductor Material:	Stranded Tinned Copper	Cable OD:	5mm
Resistance:	≤8.21（Ω/KM）	Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red	Packing:	250m Per Roll

Product Name:	2.5mm Dc Solar Cable
Structure:	49/0.25mm
Insulation Material:	XLPE
Jacket Material:	XLPE
Conductor Material:	Stranded Tinned Copper
Cable OD:	5mm
Resistance:	≤8.21（Ω/KM）
Rated Voltage:	AC Uo/U0.6~1.0KV , DC1.5KV
Color:	Black / Red
Packing:	250m Per Roll

Description

2.5mm DC Solar Cable XLPE Insulation 5mm OD Tinned Copper

TUV XLPE EN50618 H1Z2Z2-K 1x2.5mm DC Solar Cable with UV Resistance Tinned Copper

Product Description

High-quality solar cable designed for photovoltaic systems with excellent UV resistance and tinned copper conductor for enhanced durability.

Specifications

Rating: Voltage: 600/1000V, Temperature: -40°C to 90°C
Conductor: Tinned annealed copper (49/0.25mm)
Insulation: 90°C XLPE, black
Jacket: 90°C XLPE, black or red
Cable OD: 5.0mm

Marking

TÜV SÜD EN 50618:2014 H1Z2Z2-K 1x2,5mm2 DC 1.5 KV NINGBO NEW ENERGY CO.,LTD

Key Features

Dual wall insulation with electron beam cross-linking

Excellent resistance to UV, oil, greases, oxygen and ozone

Superior abrasion resistance

Halogen free, flame retardant, low toxicity

Excellent flexibility and stripping performance

High current carrying capacity

TUV approved

Product Name	TUV Standard Solar Cable
Model NO.	H1Z2Z2-K 1x 2.5mm2
Voltage	High Voltage Cable
Insulation Material	XLPE
Material Shape	Round Wire
Certification	ROSH, CE, TUV
Standards	TUV EN50618
Cores	1 Core
Transport Package	Iron-Wooden Drum, Iron Drum
Application	Construction, Underground, Industrial, Power Station
Sheath Material	XLPE
Wire Core Material	Tinned Copper
Cross Section	1.5-16mm2

Applications

Specifically designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions. Suitable for permanent installations.

General Characteristics

Electron-beam cross-linked insulation and coating
High resistance against heat, cold, oil, abrasion, ozone, UV and weather
Improved reaction in case of fire: low smoke, halogen free, flame retardant
Flexible, easy to strip, very low space requirement
Extremely mechanically robust with very long lifetime

Technical Specifications

Electrical Properties	DC resistance: ≤5.09 Ω/km at 20℃ Insulation resistance: ≥1014 Ω·cm at 20℃, ≥1011 Ω·cm at 90℃ Sheath surface resistance: ≥109 Ω
Cable Structure	Conductor: Tinned copper wire (2.5, 4, 6, 10, 16 mm²) Insulation: >0.5mm thick low smoke and halogen free material Sheath: Low smoke and halogen free material thickness >0.5mm
Operating Parameters	Ambient temperature: -40℃ to +90℃ Maximum conductor temperature: 120℃ (200℃ for 5s in short circuit) Voltage limit: AC 0.6/1kV, DC 1.8kV

Note: We also produce single core of 4mm², 6mm², 10mm² and 16mm², as well as dual cores. Please contact us for these variations.
